Andem-evineAndem-evine

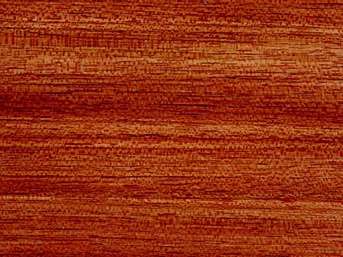

Andem-evine (Copaifera mildbraedii)

Family: Leguminosae

Common names: Andem-evine, Bangula, Bilombi, Bofele, Entendua, Etimoe, Indemba, Kamalufu, N'kara, Ovbialeke

Distributed in: Central African Republic, Congo, Gabon, Ghana, Ivory Coast, Nigeria, Zaire (Africa)

Common uses: Boat building (general), Boxes and crates, Carvings, Furniture, Heavy construction, Joinery, Millwork, Musical instruments, Plywood, Vehicle parts

Environment profile: Vulnerable

Tree size: Tree height is 30-40 m

Colors: the heart isRed, Reddish brownand the sapwoodWhite to yellow, Yellow.The grain isStraight, the textureMediumand the lusterMedium

Natural durability: Susceptible to attack from powder post (Lyctid & Bostrychid) beetles, Susceptible to attack from termites (Isoptera)

LightInduced Color Change: None

Kiln Drying Rate: Naturally dries slowly

Drying Defects: Severe surface checking, Splitting

Ease of Drying: Slowly

Tree Identification: Bole/stem form is straight

Comments: General finishing qualities are rated as good

Boring: Fairly easy to very easy

Carving: Fairly Easy to Very Easy

Cutting Resistance: Easy to saw

Gluing: Fairly Easy to Very Easy

Mortising: Fairly Easy to Very Easy

Moulding: Fairly Easy to Very Easy

Movement in Service: Fairly Easy to Very Easy

Nailing: Fairly Easy to Very Easy, Very Good to Excellent

Planing: Planes well, to a good finish

Resistance to Impregnation: Heartwood is highly resistant

Response to hand tools: Responds Readily

Routing recessing: Fairly Easy to Very Easy

Sanding: Very Good to Excellent Results

Veneering qualities: Difficult to veneer, Suitable for slicing

Screwing: Very Good to Excellent Results ; Turning: Fairly Easy to Very Easy

Polishing: Very Good to Excellent;

  • Numerical data Metric
  • Numerical data English
  • Strength properties
  • References
Item Green Dry Metric
Specific Gravity
Density 753 kg/m3
Bending Strength 990 1495 kg/cm2
Crushing Strength 485 699 kg/cm2
Hardness 752 kg
Impact Strength cm
Shearing Strength 155 kg/cm2
Stiffness 123 142 1000 kg/cm2
Tangential Shrinkage 8 %
Radial Shrinkage 4 %
Weight 737 592 kg/m3
Maximum Load cm-kg/cm3
Toughness cm-kg
Static Bending kg/cm2
Item Green Dry English
Bending Strength 14087 21277 psi
Density 47 lbs/ft3
Hardness 1658 lbs
Maximum Crushing Strength 6899 9945 psi
Shearing Strength 2205 psi
Stiffness 1762 2031 1000 psi
Weight 46 37 lbs/ft3
Radial Shrinkage 4 %
Tangential Shrinkage 8 %
Volumetric Shrinkage 13 %

Bending strength (MOR) = high
Shrinkage, Tangential = fairly large
Max. crushing strength = high
Shrinkage, Radial = fairly large
Shrinkage, Volumetric = moderate
Shrinkage, Volumetric = large
Shrinkage, Volumetric = fairly large
Shrinkage, Tangential = moderate
Shrinkage, Tangential = large
Shrinkage, Radial = small
Shrinkage, Radial = moderate
Shrinkage, Radial = large
Shearing strength (parallel to grain) = medium
Modulus of Elasticity (stiffness) = low
Modulus of Elasticity (stiffness) = high
Hardness (side grain) = medium
Density (dry weight) = 46-52 lbs/cu. ft.
Bending strength (MOR) = very high
Bending strength (MOR) = medium

Bolza, E., Keating, W.G.,1972,African Timbers - the Properties, Uses and Characteristics of 700 Species,C.S.I.R.O. Div. of Building ResearchErfurth, T., Rusche, H.,1976,The Marketing of Tropical Wood A. Wood Species from African Moist Forests,F.A.O. Forestry DepartmentFouarge, J.,1970,Essais Physiques,Mecaniques et de Durabilite de Bois de la Republique,Democratique du Congo,I.N.E.A.C. Belgium Serie Technique,No.76France - C.T.F.T./C.T.B.,1982,Guide pour le Choix des Essences Deroulables-pour la fabrication du,contreplaque,C.T.F.T./C.T.B. FranceKeay, R.W.J.,1964,Nigerian Trees Vol.2,Nigeria Federal Department of Forest Research, IbadanLebacq, L., Dechamps, R.,1967,Contribution a un Inventaire de Forets du Nord-kasai,Musee Royal de L'Afrique Centrale Belgium Annals Series 8 No.5Pieters, A.,1977,Essences Forestieres du Zaire,R.U.G. Gent BelguimSallenave, P.,1955,Proprietes Phyiques et Mecaniques des Bois Tropicaux de l'Union Francaise,C.T.F.TTakahashi, A.,1978,Compilation of Data on the Mechanical Properties of Foreign Woods (Part,III) Africa,Shimane University, Japan, Research Report on Foreign Wood No. 7
*Come interpretare i dati (manleva su eventuali imprecisioni)
