AlderAlderAlder
Alder (Alnus glutinosa)

Family: Betulaceae

Common names: Alder, Aulne noir, Aune, Aune commune, Black alder, Common alder, Eis, Els, Erle, European alder, Grey alder, Hannoki, Japanese alder, Klibbal

Distributed in: Russia, Czech Republic, Denmark, Egypt, France, Germany, Italy, Japan, Netherlands, Norway, Poland, Portugal, Russia, Slovakia, Spain, Sweden, Turkey, United Kingdom (Africa, Eastern Europe, Mediterranean Sea Region, Oceania and S.E. Asia, Western Europe)

Distribution overview: Natural throughout British Isles and most of Europe. Naturalized in NE U.S. and SE Canada (Maritime provinces) and forming pure stands along some rivers and streams. Introduced in colonial times. It is also found in western Asia, and northern Africa. Long cultivated, the original range is difficult to determine. Black alder is spread all over Europe from Ireland in the west to western Siberia in the east, as far as northern Africa in the south and up to 65o in the north. It has been introduced in the Azores and in the United States of America. Its range both in Europe and Africa is not compact but markedly disjunct. In the mountainous regions of the central Europe it reaches altitudes between 1500 and 1800 m. Its preferred climate is moderate to cold one, it grows best in deep soils where the water table is high. Optimum amount of precipitation is from 800 to 860 mm per year. It does not tolerate stagnant water or high soil acidity.

Common uses: Artificial limbs, Baskets, Bearings & bushings, Boat building (general), Boxes and crates, Broom handles, Brush backs & handles, Brush backs & handles, Cabinetmaking, Carvings, Charcoal, Flooring: industrial heavy traffic, Furniture, Joinery, Light construction, Marine construction, Musical instruments, Particleboard, Piling, Plywood corestock, Plywood, Posts, Pulp/Paper products, Shade rollers, Sporting Goods, Textile equipment, Toys, Turnery, Utility plywood, Veneer, Veneer: decorative, Wooden shoes

Product sources: The tree is cultivated in some parts of the Philippines for its valuable oil (lumbang oil), which is used as a substitute for linseed oil.

Environment profile: Status has not been officially assessed

Tree size: Trunk diameter is 100-150 cm

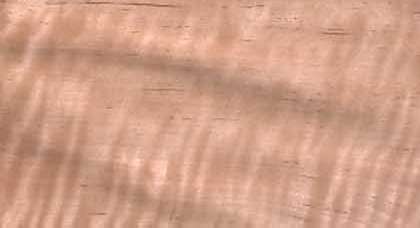

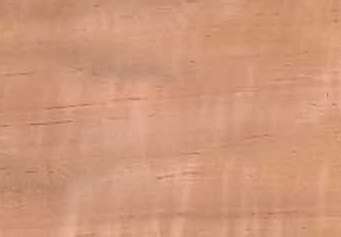

Colors: the heart isYellow, Yellow to golden-yellow to orangeand the sapwoodWhite, Yellow.The grain isStriped figure, the textureFineand the lusterSlightly lustrous

Natural durability: Susceptible to marine borer attack, Susceptible to wood staining fungal attack

Odor: No specific smell or taste

LightInduced Color Change: Darker

Kiln Schedules: Uk=J US=T10D5S/T8D4S Fr=4

Kiln Drying Rate: Naturally dries quickly

Drying Defects: Little or no degrade

Ease of Drying: Slowly

Comments: General finishing qualities are rated as good

Blunting Effect: Little

Boring: Fairly easy to very easy

Cutting Resistance: Low resistance to sawing

Gluing: Glues well

Mortising: Fairly Easy to Very Easy

Moulding: Fairly Easy to Very Easy

Movement in Service: Fairly Easy to Very Easy

Nailing: Satisfactory nailing properties, Very Good to Excellent

Planing: Sharp surfaces are required

Resistance to Impregnation: Sapwood is permeable

Response to hand tools: Responds well to hand tools

Routing recessing: Fairly Easy to Very Easy

Veneering qualities: Veneers easily, Veneers moderately easy

Steam bending: Moderate

Screwing: Screwing yields satisfactory results, Very Good to Excellent Results; Turning: Very Good to Excellent Results

Painting: Very Good to Excellent; Polishing: Fairly Easy to Very Easy; Staining: Very Good to Excellent;

  • Numerical data Metric
  • Numerical data English
  • Strength properties
  • References
Item Green Dry Metric
Specific Gravity 0,41
Density 528 kg/m3
Bending Strength 456 731 kg/cm2
Crushing Strength 246 430 kg/cm2
Hardness 293 kg
Impact Strength 63 68 cm
Shearing Strength 110 kg/cm2
Stiffness 80 93 1000 kg/cm2
Tangential Shrinkage %
Radial Shrinkage 5 %
Weight 512 496 kg/m3
Maximum Load 0,56 0,77 cm-kg/cm3
Toughness 192 cm-kg
Static Bending kg/cm2
Item Green Dry English
Bending Strength 6490 10402 psi
Density 33 lbs/ft3
Hardness 647 lbs
Impact Strength 25 27 inches
Maximum Crushing Strength 3505 6125 psi
Shearing Strength 1573 psi
Stiffness 1142 1329 1000 psi
Toughness 167 inch-lbs
Work to Maximum Load 8 11 inch-lbs/in3
Specific Gravity 0.41
Weight 32 31 lbs/ft3
Radial Shrinkage 5 %
Tangential Shrinkage 9 %

Density (dry weight) = 31-37 lbs/cu. ft. 0
Modulus of Elasticity (stiffness) = very low
Bending strength (MOR) = low
Shrinkage, Radial = fairly large
Shrinkage, Tangential = large
Shrinkage, Tangential = moderate
Shrinkage, Radial = small
Shrinkage, Radial = moderate
Modulus of Elasticity (stiffness) = low
Max. crushing strength = low
Toughness-Hammer drop (Impact Strength) = low
Shrinkage, Tangential = small
Shrinkage, Tangential = fairly large
Density (dry weight) = 38-45 lbs/cu. ft.
Density (dry weight) = 23-30 lbs/cu. ft.

Armstrong, F.H.,1960,The Strength Properties of Timber,Forest Products Research Laboratory, London Bulletin,No.45Bolza, E., Keating, W.G.,1972,African Timbers - the Properties, Uses and Characteristics of 700 Species,C.S.I.R.O. Div. of Building ResearchBrown, W.H.,1978,Timbers of the World, No. 6 Europe,TRADA, Red Booklet SeriesBrown, W.H.,1978,Timbers of the World, No.5 Philippines and Japan,TRADA, Red Booklet SeriesClifford, N.,1953,Commercial Hardwoods - Their Characteristics Identification and,Utilization,Sir Isaac Pitman & Sons Ltd. LondonClifford, N.,1957,Timber Identification for the Builder and Architect,Leonard Hill (Books) LTD. LondonFarmer, R.H.,1972,Handbook of Hardwoods,HMSOForest Products Research Laboratory, U.K.,1937,A Handbook of Home-Grown Timbers,HMSOForest Products Research Laboratory, U.K.,1967,The Steam Bending Properties of various timbers,Forest Products Research Laboratory, Princes Risborough, Leaflet,No.45Forests Products Research Laboratory, U.K.,1956,A Handbook of Hardwoods,Forest Products Research Laboratory, Princes Risborough, Department of,Science and Industrial Research, Building Research EstablishmentGrant, D.K.S.,1934,Some Local Timbers,Tanzania Forest DepartmentHiggins, H.G., et al,1973,Pulping of Tropical Hardwoods: Individual and Mixed Species Wood and Paper,Properties Resource Assessment,CSIRO Forest Products Lab. Div. Appl. Chem. Tech. Paper,No.70HMSO. 1981. Handbook of Hardwoods, 2nd Edition. Revised by R.H. Farmer. Department of theEnvironment, Building Research Establishment, Princes Risborough Laboratory, Princes Risborough, Aylesbury, Buckinghamshire.HMSO. 1985. Broadleaves. Forestry CommissionBooklet No. 20. Text by H.E. Edlin. Revised byA.F. Mitchell. Forestry Commission, Her Majesty'sHoward, A.L.,1948,A Manual of Timbers of the World.,Macmillan & Co. Ltd. London 3rd ed.I.U.F.R.O.,1973,Veneer Species of the World,Assembled at F.P.L. Madison on behalf of I.U.F.R.O. Working Party on,Slicing and Veneer CuttingLaidlaw, W.B.R.1960. Guide to British Hardwoods.Published by Leonard Hill [Books] Limited, 9 Eden Street, N.W.1, London.Lavers, G.M. 1967. The Strength Properties of Timbers. Forest Products Research Bulletin, No.50 (Spersedes Bulletin No. 45). Ministry ofTechnology, Her Majesty's Stationery Office, London.Lavers, G.M.,1983,The Strength Properties of Timber (3rd ed. revised Moore G.L.,Forest Products Research Laboratory, Princes Risborough, Building Research,Establishment Report (formerly Bulletin No.50)Nairn, P.M., Editor. 1936. Wood Specimens - 100 Reproductions in Color -A Series of Selected Timbers Reproduced in Natural Color with Introduction and Annotations by H.A. Cox. The Nema Press, Proprietors of Wood, London.Patterson, D.,1988,Commercial Timbers of the World, 5th Edition,Gower Technical PressRedding, L.W.,1971,Resistance of Timbers to Impregnation with Creosote,Forest Products Research Laboratory, Princes Risborough, Building Research,Establishment Bulletin No.54 pp.43Rendle, B.J.,1969,World Timbers (3 Vols.,Ernest Benn Ltd. LondonSmith, D.N.,1959,The Natural Durability of Timber,Forest Products Research Laboratory, Princes Risborough, Building Research,Establishment Record,No.30Stationery Office, London.Stone, H.,1924,The Timbers of Commerce and their Identification,William Rider & Sons Ltd. LondonT.R.A.D.A.,1942,Home-grown timber trees - their characteristics, cultivation and Uses,TRADATimber Development Association Ltd.,1955,World Timbers (3 Vols.,Timber Development Association Ltd.Wood, A.D.,1963,Plywoods of the World: Their Development, Manufacture and,Application,Johnston & Bacon Ltd. Edinburgh & London
